2901431 | Phoenix Contact

Safety relays, 3 Form A (N/O) + 1 Form B (N/C), 230 V (DC), 50 Ω, 6 A, 250 V (DC), 250 V (AC), 2901431

Order No.: 64P2814
EAN: 4046356592178
MPN:
2901431
PSR-SPP-230AC/ESAM2/3X1/1X2/B
Series: PSR
2901431 Phoenix Contact Monitoring Relays
Image may differ
Unit Price (€ / pc.)
252.2086 € *
Available in 10 days: 12 pcs. - if ordered today
Total Price:
252.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
252.2086 €

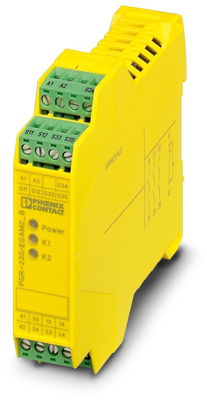

Safety relay, 2901431, Phoenix Contact

Safety relay for emergency stop and safety door up to SIL 1, SIL CL 1, Cat. 1, PL c, Depending on the application up to SIL 3, SIL CL 3, Cat. 4, PL e, Single-channel operation, 3 enabling current paths, Nominal input voltage of 230 V AC/DC, Pluggable push-in terminal block.

Technical specifications
Filter Property Value
Switching Voltage (DC) 250 V
Contact type 3 Form A (N/O) + 1 Form B (N/C)
Coil resistance 50 Ω
Switching Voltage (AC) 250 V
switching current 6 A
Connection tension clamp connection
Breaking capacity 2000 VA
Contact material AgSnO2
Coil voltage (DC) 230 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
