2700466 | Phoenix Contact
Safety relays, 3 Form A (N/O), 24 V (DC), 150 Ω, 6 A, 250 V (DC), 250 V (AC), 2700466
Unit Price (€ / pc.)
179.9875 € *
Available in 5 Days: 102 pcs. - if ordered today

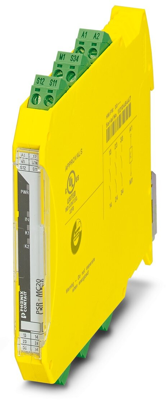

Safety relay, 2700466, Phoenix Contact
Safety relay for emergency stop and safety doors up to SIL 1, Cat. 1, PL c, Depending on the application up to SIL 3, Cat. 4, PL e, 1-channel operation, Automatic/Manual start, 3 enabling current paths, US = 24 VDC, Plug-in screw terminal block.
Features
- Low housing width of just 12.5 mm
- Manually monitored and automatic activation in a single device
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 150 Ω | |
| Switching Voltage (AC) | 250 V | |
| Connection | screw connection | |
| Breaking capacity | 1500 VA | |
| Coil voltage (DC) | 24 V | |
| Contact material | AgSnO2 | |
| Switching Voltage (DC) | 250 V | |
| switching current | 6 A | |
| Contact type | 3 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
