1608100 | Phoenix Contact
Plug, RJ45, 4 pole, 8P4C, Cat 5e, IDC connection, 1608100
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
52.7765 € *
Available in 5 Days: 61 pcs. - if ordered today

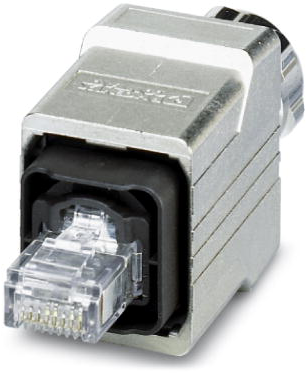

RJ45 connector, 1608100, Phoenix Contact
RJ45 connector, Degree of protection: IP65/IP67, Number of positions: 4, 100 Mbps, CAT5 (IEC 11801:2002), Material: Zinc die-cast, Connection method: IDC fast connection, Connection cross section: AWG 26-22, Cable outlet: straight, Color: silver, PROFINET
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| RJ-Version | RJ45 | |
| Pin number | 4 pole | |
| Pole image | 8P4C | |
| Category | Cat 5e | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
