1321101 | Phoenix Contact
Socket, RJ45, 8 pole, 8P8C, solder connection, through hole, 1321101
Unit Price (€ / pc.)
5.6525 € *
Available in 10 days: 2,772 pcs. - if ordered today

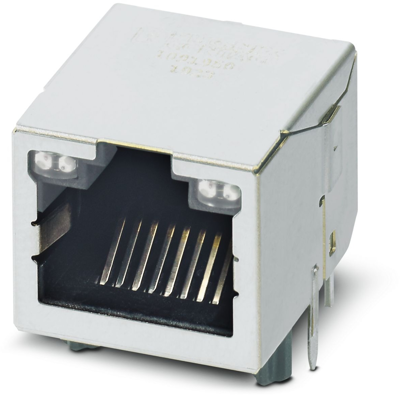

RJ45 PCB connector, 1321101, Phoenix Contact
RJ45 PCB connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, material: Metal, connection method: THR reflow/THT wave, Short solder contacts.
Features
- Ideal for demanding applications due to the high shock and vibration resistance as well as the extended temperature range
- 360° shielding ensures reliable transmission, even in industrial applications
- Housing shield springs enable an optimized EMC shielding concept
- With integrated hybrid LEDs as optical status indicators of data transmission
- The extended temperature range from -40°C to +105°C enables use in demanding industrial applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| RJ-Version | RJ45 | |
| Connection | solder connection | |
| Pole image | 8P8C | |
| Pin number | 8 pole | |
| Version | socket | |
| Assembly | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
