2902854 | Phoenix Contact

FO converter, 100 Mbit/s, 18-30 VDC, 2902854

Order No.: 64P6719
EAN: 4046356689243
MPN:
2902854
FL MC EF 1300 MM ST
Series: FL MC
2902854 Phoenix Contact Media converters
Image may differ
Unit Price (€ / pc.)
403.8503 € *
Available in 10 days: 570 pcs. - if ordered today
Total Price:
403.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
403.8503 €

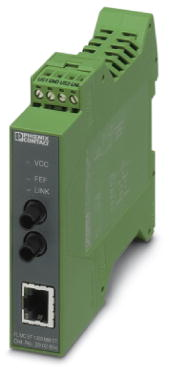

FO converter, 2902854, Phoenix Contact

FO converter with B-FOC (ST) fiber optic connection (1300 nm), for converting 10/100Base-T(X) to multi-mode fiberglass (50/125 µm). Auto negotiation and auto MDI(X) function. Comprehensive link diagnostics. DIN-rail mountable, 18 to 30 VDC supply.

Features

  • Transmission ranges up to 10 km
  • Auto negotiation
  • Auto MDI/MDI-X switch-over
  • Link fault pass through (LFPT) and far end fault (FEF) functions for easy connection monitoring
  • 10/100 Mbps
  • Shipbuilding approval in accordance with DNV GL
Technical specifications
Filter Property Value
Assembly DIN rail
Voltage 18-30 VDC
Version FO converter
Height 99 mm
Width 22.5 mm
Depth 114.5 mm
Data transmission rate 100000000 mb/s
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
