FO converter, 500 kbit/s, 24 VDC, 2708562
Unit Price (€ / pc.)
1,463.6524 € *
Available in 10 days: 68 pcs. - if ordered today

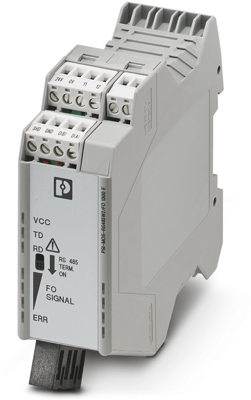

FO converter, 2708562, Phoenix Contact
FO converter with integrated optical diagnostics, alarm contact, for RS-485 2-wire bus systems (SUCONET K, MODBUS) up to 500 kbps, NRZ coding, termination device with an FO interface (SC-Duplex), 1300 nm, for fiberglass cable.
Features
- Can be combined with the PSI copper repeater in a modular way using DIN rail connectors
- Supply voltage and data signals routed through the DIN rail connectors
- Connections can be plugged in via a COMBICON screw terminal block
- Automatic data rate detection or fixed data rate setting via DIP switches
- Redundant power supply possible by means of optional system power supply unit
- High-quality electrical isolation between all interfaces (DeviceNet // fiber optic ports // power supply // DIN rail connector)
- Approved for use in zone 2
- Integrated optical diagnostics for continuous monitoring of FO paths
- Floating switch contact for advance warning of critical FO paths
- Suitable for all data rates up to 500 kbps
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Height | 99 mm | |
| Version | FO converter | |
| Voltage | 24 VDC | |
| Width | 35 mm | |
| Data transmission rate | 500000 mb/s | |
| Depth | 105 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
