2761871 | Phoenix Contact
CAN D-Sub bus connector, 9 pole, 2761871
Unit Price (€ / pc.)
88.1552 € *
Available in 5 Days: 356 pcs. - if ordered today

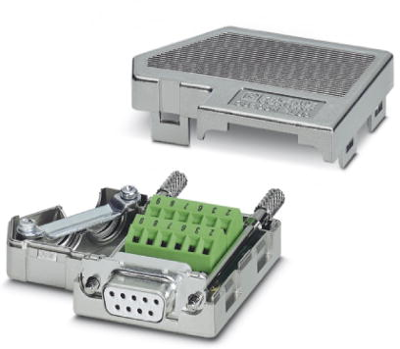

Bus connector, 2761871, Phoenix Contact
D-SUB connector, 9-pole, Female connector, Two cable entries < 35°, Bus system: CANopen, FIP, Pin assignment: 2, 3, 6, 7, 8, 9 to two screw connection terminal blocks.
Features
- Assembly under field conditions
- Separate terminal blocks for each cable
- High transmission speed
- Easy assembly thanks to knurled screws
- High level of EMC
- Can be used universally
- Change to the D-SUB orientation through a reversible connection block
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Bus Connection | D-Sub | |
| Pin number | 9 pole | |
| Bussystem | CAN | |
| Degree of protection (IP) | IP20 | |
| Contact connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
