2761622 | Phoenix Contact

UNIVERSAL D-Sub bus connector, 25 pole, 2761622

Order No.: 64P6988
EAN: 4017918107994
MPN:
2761622
SUBCON 25/M-SH
Series: SUBCON

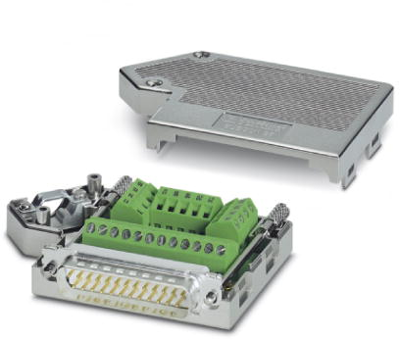

2761622 Phoenix Contact Interface Connectors, Bus Connectors Image 1

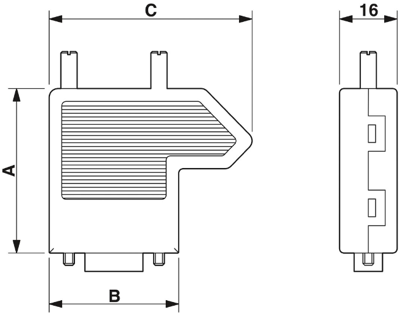

2761622 Phoenix Contact Interface Connectors, Bus Connectors Image 2
Image may differ
Unit Price (€ / pc.)
67.1636 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
67.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
67.1636 €

Bus connector, 2761622, Phoenix Contact

D-SUB connector, 25-pole, Male connector, One 35° cable entry, Universal type for all systems, Pin assignment: 1, 2, 3, ..., 24, 25 to screw connection terminal block.

Features

  • Easy assembly thanks to knurled screws
  • Can be used universally
  • High level of EMC
  • Flexibility in terms of cable entry selection
  • Assembly under field conditions
  • Change to the D-SUB orientation through a reversible connection block
Technical specifications
Orientation angled
Pin number 25 pole
Contact connection PCB connection
Degree of protection (IP) IP20
Bus Connection D-Sub
Bussystem UNIVERSAL
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
