UNIVERSAL D-Sub bus connector, 25 pole, 2761619
Unit Price (€ / pc.)
94.2956 € *
Available in 5 Days: 568 pcs. - if ordered today

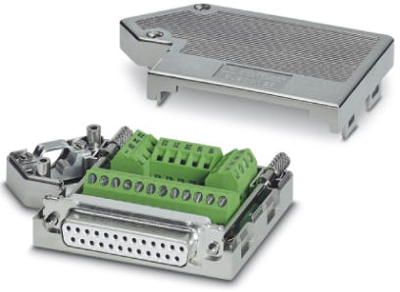

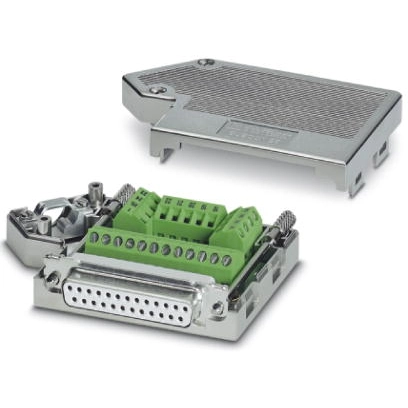

Bus connector, 2761619, Phoenix Contact
The range covers SUBCON plugs for point-to-point connections with a cable infeed in 9, 15 and 25-pole male or female versions. The optional fastening screw SUBCON-SHORT-SCREW is available as an accessory for narrow installation conditions. The screw is completely integrated into the housing by not having a knurl.
Features
- Assembly under field conditions
- Easy assembly thanks to knurled screws
- High level of EMC
- Flexibility in terms of cable entry selection
- Can be used universally
- Change to the D-SUB orientation through a reversible connection block
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP20 | |
| Bussystem | UNIVERSAL | |
| Bus Connection | D-Sub | |
| Pin number | 25 pole | |
| Contact connection | PCB connection | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
