2761596 | Phoenix Contact

UNIVERSAL D-Sub bus connector, 15 pole, 2761596

Order No.: 64P6984
EAN: 4017918104818
MPN:
2761596
SUBCON 15/F-SH
Series: SUBCON

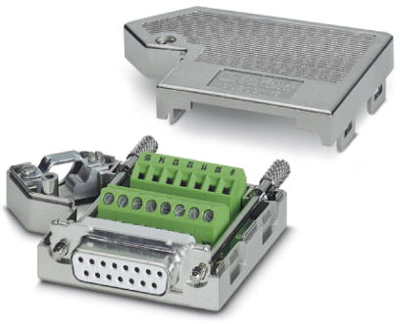

2761596 Phoenix Contact Interface Connectors, Bus Connectors Image 1

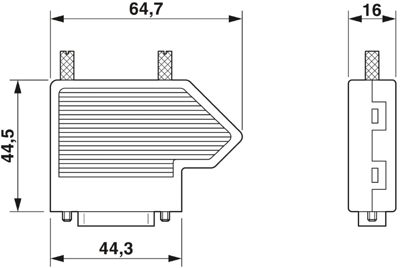

2761596 Phoenix Contact Interface Connectors, Bus Connectors Image 2
Image may differ
Unit Price (€ / pc.)
88.1552 € *
Available in 10 days: 803 pcs. - if ordered today
Total Price:
88.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
88.1552 €

Bus connector, 2761596, Phoenix Contact

D-SUB connector, 15-pole, Female connector, One 35° cable entry, Universal type for all systems, Pin assignment: 1, 2, 3, ..., 14, 15 to screw connection terminal block.

Features

  • Easy assembly thanks to knurled screws
  • Can be used universally
  • High level of EMC
  • Flexibility in terms of cable entry selection
  • Assembly under field conditions
  • Change to the D-SUB orientation through a reversible connection block
Technical specifications
Filter Property Value
Bus Connection D-Sub
Pin number 15 pole
Orientation angled
Bussystem UNIVERSAL
Degree of protection (IP) IP20
Contact connection PCB connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
