2761509 | Phoenix Contact

UNIVERSAL D-Sub bus connector, 9 pole, 2761509

Order No.: 64P6981
EAN: 4017918064747
MPN:
2761509
SUBCON 9/M-SH
Series: SUBCON

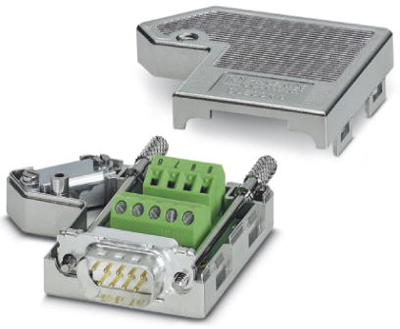

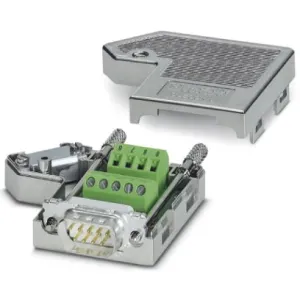

2761509 Phoenix Contact Interface Connectors, Bus Connectors Image 1

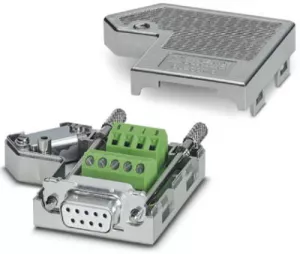

2761509 Phoenix Contact Interface Connectors, Bus Connectors Image 2
Image may differ
Unit Price (€ / pc.)
80.5868 € *
Available in 10 days: 825 pcs. - if ordered today
Total Price:
80.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
80.5868 €

Bus connector, 2761509, Phoenix Contact

The 9-pole version of the SUBCON connector range is not just suitable for INTERBUS, but is positively ideal. A whole host of further applications are opened up by having all the connections assigned to their own 1 mm² screw terminal block. The range covers SUBCON plugs for point-to-point connections with a cable infeed in 9, 15 and 25-pole male or female versions. The optional fastening screw SUBCON-SHORT-SCREW is available as an accessory for narrow installation conditions. The screw is completely integrated into the housing by not having a knurl.

Features

  • Easy assembly thanks to knurled screws
  • Can be used universally
  • High level of EMC
  • Flexibility in terms of cable entry selection
  • Assembly under field conditions
  • Change to the D-SUB orientation through a reversible connection block
Technical specifications
Bus Connection D-Sub
Pin number 9 pole
Orientation angled
Contact connection PCB connection
Bussystem UNIVERSAL
Degree of protection (IP) IP20
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
