2744403 | Phoenix Contact
Profibus D-Sub bus connector, 9 pole, 12 Mbit/s, 2744403
Unit Price (€ / pc.)
96.6994 € *
Standard delivery time from the manufacturer is: 1 Week

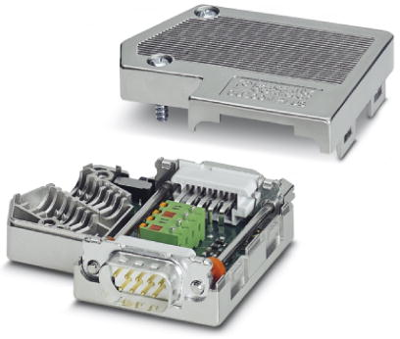

Bus connector, 2744403, Phoenix Contact
D-SUB connector, 9-pole, Male connector, 35° cable entry, Bus system: PROFIBUS DP up to 12 Mbps with Pg D-SUB socket for connecting a programming device, Termination resistor can be switched on via slide switch, Pin assignment: 3, 5, 6, 8; Spring-cage connection terminal blocks.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bussystem | profibus | |
| Pin number | 9 pole | |
| Data transmission rate | 12000000 mb/s | |
| Degree of protection (IP) | IP40 | |
| Bus Connection | D-Sub | |
| Contact connection | PCB connection | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
