2313708 | Phoenix Contact
Profibus D-Sub bus connector, 9 pole, 12 Mbit/s, 2313708
Unit Price (€ / pc.)
98.1393 € *
Standard delivery time from the manufacturer is: 5 Weeks

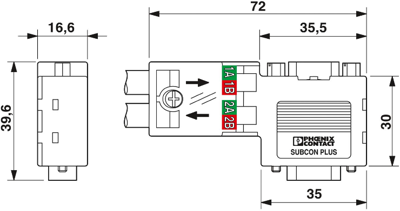

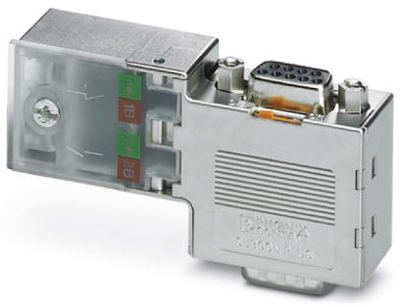

Bus connector, 2313708, Phoenix Contact
The SUBCON-PLUS-PROFIB was specially designed for use in PROFIBUS systems up to 12 Mbps. Under field conditions, it allows convenient and fast connection of the incoming and outgoing bus cable. The terminating resistor is already integrated in all versions. It can be connected externally by means of a slide switch. At the same time, the outgoing bus segment is switched off. This makes it easy to start up segment by segment while incorrect terminations are avoided.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Data transmission rate | 12000000 mb/s | |
| Contact connection | PCB connection | |
| Bus Connection | D-Sub | |
| Bussystem | profibus | |
| Pin number | 9 pole | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
