2313672 | Phoenix Contact

Profibus D-Sub bus connector, 9 pole, 12 Mbit/s, 2313672

Order No.: 64P7017
EAN: 4046356514583
MPN:
2313672
SUBCON-PLUS-PROFIB/90/IDC
Series: SUBCON

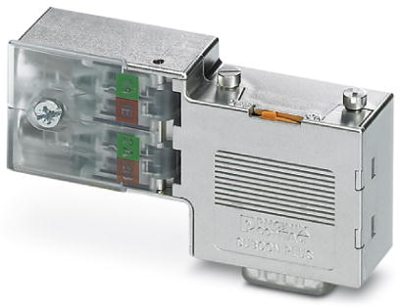

2313672 Phoenix Contact Interface Connectors, Bus Connectors Image 1
2313672 Phoenix Contact Interface Connectors, Bus Connectors Image 2
Image may differ
Unit Price (€ / pc.)
82.0267 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
82.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
82.0267 €

Bus connector, 2313672, Phoenix Contact

The SUBCON-PLUS-PROFIB was specially designed for use in PROFIBUS systems up to 12 Mbps. Under field conditions, it allows convenient and fast connection of the incoming and outgoing bus cable. The terminating resistor is already integrated in all versions. It can be connected externally by means of a slide switch. At the same time, the outgoing bus segment is switched off. This makes it easy to start up segment by segment while incorrect terminations are avoided.

Technical specifications
Bus Connection D-Sub
Degree of protection (IP) IP40
Pin number 9 pole
Data transmission rate 12000000 mb/s
Bussystem profibus
Contact connection IDC connection
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
