2316275 | Phoenix Contact

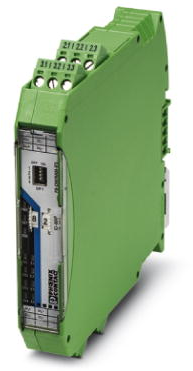

I/O module for NAMUR proximity initiators, (W x H x D) 17.5 x 113 x 114.5 mm, 2316275
Unit Price (€ / pc.)
468.741 € *
Standard delivery time from the manufacturer is: On Request
Radioline - I/O extension moduled, 2316275, Phoenix Contact
Radioline - I/O extension module, 4 NAMUR digital input module used in Radioline and PROFIBUS PA MUX I/O systems. Fulfills the NAMUR proximity sensor standard EN 60947-5-6, and communication to the head stations for Radioline systems and the FB-MUX/HS PA via the T-BUS connector installed on the DIN rail. This module has channel-to-channel isolation.
Features
- Extended temperature range of -40 °C to +70 °C
- Easy module replacement even during operation (hot swap)
- Easy startup via thumbwheel
- Approved for use in zone 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | I/O module | |
| Suitable for | NAMUR proximity initiators | |
| Function | extension module | |
| Assembly | rail mounting | |
| Width | 17.5 mm | |
| Height | 113 mm | |
| Depth | 114.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
