1689475 | Phoenix Contact
Grommet housing, PA, push pull, IP67, 1689475
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
17.5287 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
17.53 € *
Price list
Quantity
Price per unit*
1 pcs.
17.5287 €
10 pcs.
16.1245 €
50 pcs.
14.6608 €
100 pcs.
13.2090 €
*incl. VAT plus shipping costs
Subject to prior sale

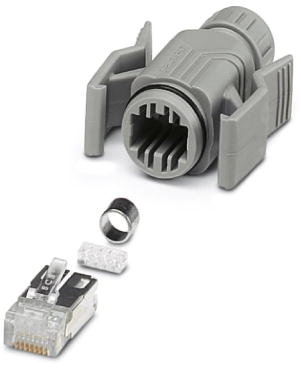

Sleeve housing, 1689475, Phoenix Contact
Sleeve housing, IP67, with push-pull interlocking for panel mounting frames, for cable cross section 5.0 mm - 6.5 mm, with pin insert VS-08-ST-RJ45, for litz wires AWG 26 and solid wires AWG 26 - 24.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | grommet housing | |
| Shell Material | PA | |
| Type of locking | push pull | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
