1424368 | Phoenix Contact

Grommet housing, size VC3, PA, PG29, straight, screw locking, IP65, 1424368

Order No.: 61P9642
EAN: 4046356772945
MPN:
1424368
VC-K-T3-IN (13-25)
Series: VC-K
1424368 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
27.9531 € *
Available in 10 days: 22 pcs. - if ordered today
Total Price:
27.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
27.9531 €

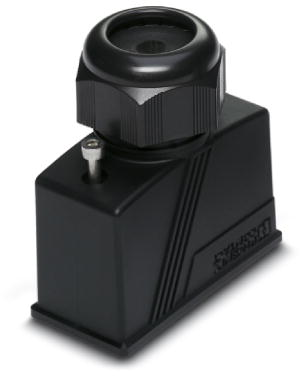

Sleeve housing, 1424368, Phoenix Contact

Sleeve housing, Type: VC3, Housing material: Polyamide, Color: black, Min. cable diameter: 13 mm, Max. cable diameter: 25 mm. When using fiber optics, the bending radii of the cable manufacturers must be observed.

Features

  • Plastic housing with straight cable outlet and cable gland
  • Variable grommet with a seal area for a cable diameter of 10 mm - 25 mm
Technical specifications
Version grommet housing
Shell size VC3
Shell Material PA
Cable Outlet PG29, straight
Type of locking screw locking
Degree of protection (IP) IP65
Logistics
Customs tariff number 85389099
Country of origin DE
Compliance
RoHS conform Yes
Substance description 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
Date of RoHS guidelines 3/31/15
SVHC free No
