1421466 | Phoenix Contact

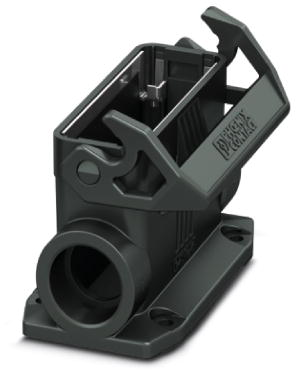

Surface mount housing, size D25, PA, 2 x M20, angled, longitudinal bow locking, IP66, 1421466

Order No.: 62P2427
EAN: 4055626265087
MPN:
1421466
HC-EVO-D25-SLWS-2SSM20-PLR-BK
Series: HC-EVO
1421466 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
27.8460 € *
Available in 10 days: 14 pcs. - if ordered today
Total Price:
27.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
27.8460 €

Box mounting base, 1421466, Phoenix Contact

Box mounting base D25, with single locking latch, Material: PA, Cable outlets: 2, Lateral, 2x M20, Height: 57 mm, Cable gland: none, Standard, Including 2x reducing adapter.

Features

  • Low weight
  • Lower risk of condensation
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size D25
Shell Material PA
Cable Outlet 2 x M20, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP66
Logistics
Property Value
Customs tariff number 85389099
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
