1421320 | Phoenix Contact

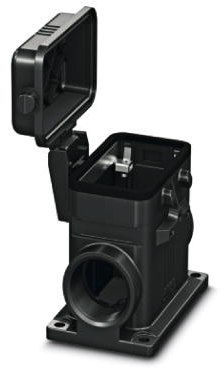

Bulkhead housing, size B10, PA, 2 x M25, angled, cross bow locking, IP66, 1421320

Order No.: 62P2340
EAN: 4055626264837
MPN:
1421320
HC-EVO-B10-SHFDC-2SSM25-PLRBK
Series: HC-EVO
Phoenix Contact
1421320 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
38.4608 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
38.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
38.4608 €

Box mounting base, 1421320, Phoenix Contact

Box mounting base B10, for double locking latch, Material: PA, Protective cover material: PC, Cable outlets: 2, Lateral, 2x M25, Height: 74 mm, Cable gland: none, Protective cover: yes, Standard, Including 2x reducing adapter.

Features

  • Low weight
  • Lower risk of condensation
Technical specifications
Version bulkhead housing
Shell size B10
Shell Material PA
Cable Outlet 2 x M25, angled
Degree of protection (IP) IP66
Type of locking cross bow locking
Logistics
Country of origin PL
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
