1411347 | Phoenix Contact

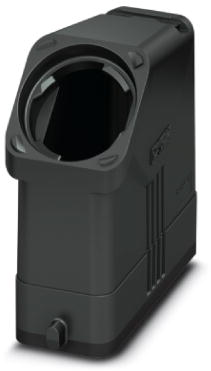

Grommet housing, size D25, PA, PG16, straight/angled, longitudinal bow locking, IP66, 1411347

Order No.: 62P2426
EAN: 4046356929172
MPN:
1411347
HC-EVO-D25-HHFS-PL-BK
Series: HC-EVO
1411347 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
19.9087 € *
Available in 10 days: 154 pcs. - if ordered today
Total Price:
19.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.9087 €

Sleeve housing, 1411347, Phoenix Contact

Sleeve housing D25, for single locking latch, Material: PA, Cable outlets: 1, straight, Height: 75.5 mm, Cable gland: none, Protective cover: no, Standard.

Features

  • Low weight
  • Lower risk of condensation
Technical specifications
Filter Property Value
Version grommet housing
Shell size D25
Shell Material PA
Cable Outlet PG16, straight/angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP66
Logistics
Property Value
Country of origin PL
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
