1411343 | Phoenix Contact

Surface mount housing, size D15, PA, 2 x M25, angled, longitudinal bow locking, IP66, 1411343

Order No.: 62P2422
EAN: 4046356929134
MPN:
1411343
HC-EVO-D15-SLWSC-2SSM25-PLR-BK
Series: HC-EVO
1411343 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
33.1534 € *
Available in 10 days: 10 pcs. - if ordered today
Total Price:
33.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.1534 €

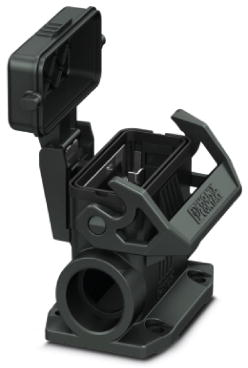

Box mounting base, 1411343, Phoenix Contact

Box mounting base D15, with single locking latch, Material: PA, Protective cover material: PC, Cable outlets: 2, Lateral, 2 x M25, Height: 52 mm, Cable gland: none, Protective cover: yes, Standard.

Features

  • Low weight
  • Lower risk of condensation
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size D15
Shell Material PA
Cable Outlet 2 x M25, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP66
Logistics
Property Value
Country of origin PL
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
