1407666 | Phoenix Contact

Surface mount housing, size B24, PA, 2 x M40, angled, cross bow locking, IP66/IP54, 1407666

Order No.: 62P2405
EAN: 4046356777292
MPN:
1407666
HC-EVO-B24-SHFDC-2SSM40-PLRBK
Series: HC-EVO
1407666 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
50.6702 € *
Available in 10 days: 159 pcs. - if ordered today
Total Price:
50.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
50.6702 €

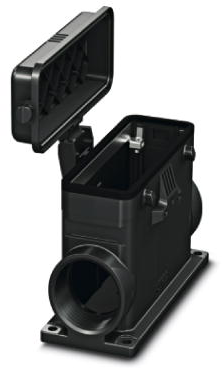

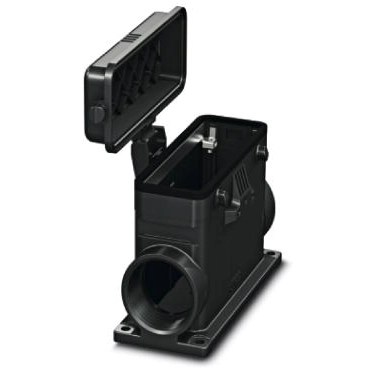

Box mounting base, 1407666, Phoenix Contact

Box mounting base B24, for double locking latch, Material: PA, Protective cover material: PC, Cable outlets: 2, Lateral, 2x M40, Height: 84 mm, Cable gland: none, Protective cover: yes, Standard.

One screw connection opening is closed, however can be opened using a screwdriver.

Features

  • Low weight
  • Lower risk of condensation
Technical specifications
Version bulkhead housing
Shell size B24
Shell Material PA
Cable Outlet 2 x M40, angled
Type of locking cross bow locking
Degree of protection (IP) IP66/IP54
Logistics
Country of origin PL
Customs tariff number 85389099
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
