1407665 | Phoenix Contact

Surface mount housing, size B24, PA, 2 x M40, angled, cross bow locking, IP66, 1407665

Order No.: 62P2408
EAN: 4046356777285
MPN:
1407665
HC-EVO-B24-SHWD-2SSM40-PLRBK
Series: HC-EVO
1407665 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
38.4608 € *
Available in 10 days: 96 pcs. - if ordered today
Total Price:
38.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.4608 €

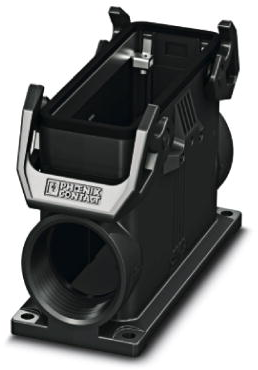

Box mounting base, 1407665, Phoenix Contact

Box mounting base B24, with double locking latch, Material: PA, Cable outlets: 2, Lateral, 2x M40, Height: 84 mm, Cable gland: none, Standard.

One screw connection opening is closed, however can be opened using a screwdriver.

Features

  • Low weight
  • Lower risk of condensation
Technical specifications
Version bulkhead housing
Shell size B24
Shell Material PA
Cable Outlet 2 x M40, angled
Type of locking cross bow locking
Degree of protection (IP) IP66
Logistics
Customs tariff number 85389099
Country of origin PL
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
