1407651 | Phoenix Contact

Surface mount housing, size B16, PA, 2 x M40, angled, longitudinal bow locking, IP66, 1407651

Order No.: 62P2382
EAN: 4046356777148
MPN:
1407651
HC-EVO-B16-SHWSC-2SSM40-PLRBK
Series: HC-EVO
1407651 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
46.7551 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
46.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
46.7551 €

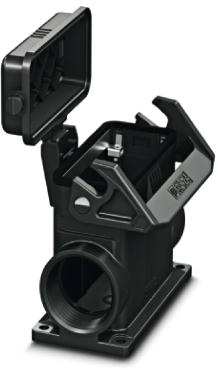

Box mounting base, 1407651, Phoenix Contact

Box mounting base B16, with single locking latch, Material: PA, Protective cover material: PC, Cable outlets: 2, Lateral, 2x M40, Height: 84 mm, Cable gland: none, Protective cover: yes, Standard.

One screw connection opening is closed, however can be opened using a screwdriver.

Features

  • Low weight
  • Lower risk of condensation
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size B16
Shell Material PA
Cable Outlet 2 x M40, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP66
Logistics
Property Value
Country of origin PL
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
