1407638 | Phoenix Contact

Surface mount housing, size B10, PA, 2 x M32, angled, cross bow locking, IP66, 1407638

Order No.: 62P2344
EAN: 4046356777001
MPN:
1407638
HC-EVO-B10-SHWD-2SSM32-PLRBK
Series: HC-EVO
1407638 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
33.1534 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
33.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.1534 €

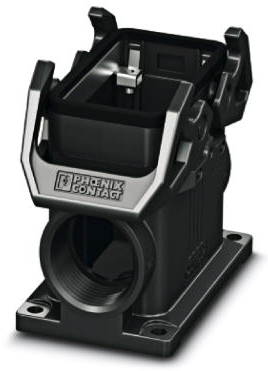

Box mounting base, 1407638, Phoenix Contact

Box mounting base B10, with double locking latch, Material: PA, Cable outlets: 2, Lateral, 2x M32, Height: 74 mm, Cable gland: none, Standard.

One screw connection opening is closed, however can be opened using a screwdriver.

Features

  • Low weight
  • Lower risk of condensation
Technical specifications
Filter Property Value
Version bulkhead housing
Shell size B10
Shell Material PA
Cable Outlet 2 x M32, angled
Type of locking cross bow locking
Degree of protection (IP) IP66
Logistics
Property Value
Country of origin PL
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
