1404217 | Phoenix Contact

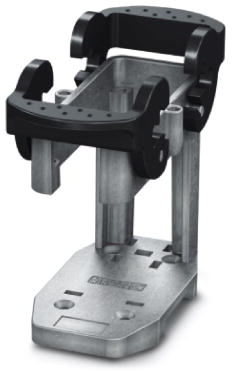

Mounting frame, size B16, die-cast aluminum, cross bow locking, 1404217

Order No.: 62P2058
EAN: 4046356681896
MPN:
1404217
HC-CIF-B16-BFWD-FH-AL
Series: HC-CIF
1404217 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
44.5417 € *
Available in 10 days: 29 pcs. - if ordered today
Total Price:
44.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
44.5417 €

DIN rail mounting frame, 1404217, Phoenix Contact

DIN rail mounting frame, Lower part with double locking latch, for sleeve housing without double locking latch or HC-CIF - HFFD, Upper part, for type B16 contact inserts, for NS35/7,5 DIN rails.

Features

  • Open base, pre-assembled cable harnesses can be used
  • Safe capacitive PE even when connected slightly askew
Technical specifications
Filter Property Value
Shell Material die-cast aluminum
Shell size B16
Version mounting frame
Type of locking cross bow locking
Logistics
Property Value
Country of origin PL
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
