2200904 | Phoenix Contact

Aluminum Profile enclosure, (L x W x H) 200 x 187 x 54.6 mm, graphite gray (RAL 7024), IP65, 2200904

Order No.: 64P1093
EAN: 4046356715867
MPN:
2200904
HC-ALU 6-161 PROFILE 200
Series: HC-ALU
2200904 Phoenix Contact General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
99.6387 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
99.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
99.6387 €

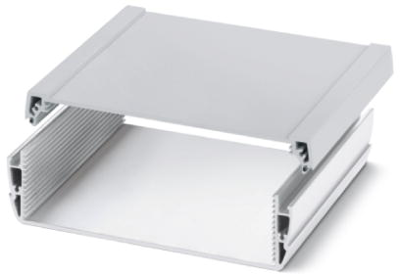

Electronic housing, 2200904, Phoenix Contact

Profile housing, Wall mounting, Aluminum profile, 2-piece, Color: graphite gray (7024), Profile width (internal): 161 mm, Profile width (external): 187 mm, Length: 200 mm, Height: 187 mm, Depth: 54.6 mm.

Features

  • Aluminum extruded profile
  • Up to IP65 degree of protection
  • Can be used as handheld and wall housing
Technical specifications
Material aluminum
Colour graphite gray
Height 54.6 mm
RAL number 7024
Degree of protection (IP) IP65
Width 187 mm
Length 200 mm
Logistics
Customs tariff number 76042100
Country of origin HU
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
