2200898 | Phoenix Contact

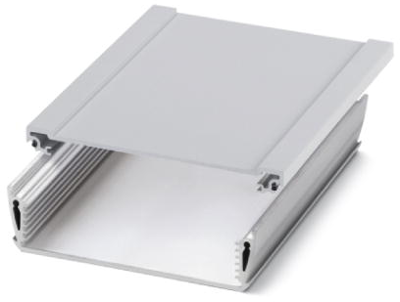

Aluminum Profile enclosure, (L x W x H) 150 x 121 x 32.8 mm, graphite gray (RAL 7024), IP65, 2200898

Order No.: 64P1086
EAN: 4046356715850
MPN:
2200898
HC-ALU 6-100,5 PROFILE 150
Series: HC-ALU
2200898 Phoenix Contact General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
49.3612 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
49.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
49.3612 €

Electronic housing, 2200898, Phoenix Contact

Profile housing, Wall mounting, Aluminum profile, 2-piece, Color: graphite gray (7024), Profile width (internal): 100.5 mm, Profile width (external): 121 mm, Length: 150 mm, Height: 121 mm, Depth: 32.8 mm.

Features

  • Aluminum extruded profile
  • Up to IP65 degree of protection
  • Can be used as handheld and wall housing
Technical specifications
Material aluminum
Colour graphite gray
Height 32.8 mm
RAL number 7024
Degree of protection (IP) IP65
Width 121 mm
Length 150 mm
Logistics
Customs tariff number 76042100
Country of origin HU
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
