3214323 | Phoenix Contact

Fuse terminal block, 2 pole, 0.14-6.0 mm², 500 V, 28 A, 3214323

Order No.: 60P5743
EAN: 4046356895156
MPN:
3214323
UT 4-PE/L/HESILED 250 (5X20)
Series: UT
3214323 Phoenix Contact Fuse Terminals

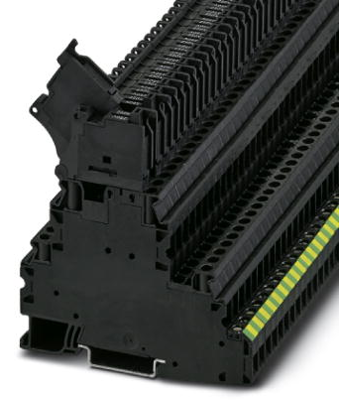

Image may differ
Unit Price (€ / pc.)
18.4569 € *
Available in 10 days: 2,728 pcs. - if ordered today
Total Price:
922.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
18.4569 €

Fuse modular terminal block, 3214323, Phoenix Contact

Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, Nom. voltage: 500 V, Nominal current: 28 A, Connection method: Screw connection, Rated cross section: 4 mm² , Cross section: 0.14-6 mm² , Connection method: Screw connection, Rated cross section: 1 mm² , Cross section: 0.14-6 mm² , Mounting type: NS 35/7,5, NS 35/15, Color: black.

Technical specifications
Filter Property Value
Version fuse terminal block
Number of terminals 5
Pin number 2 pole
Cable cross-section 0.14-6.0 mm²
AWG cross-section AWG 26 to 10
Rated Voltage 500 V
Rated surge voltage 6 kV
Rated current 28 A
Degree of soiling 3
Length 92.7 mm
Width 6.2 mm
Height 94.5 mm
Connection screw connection
Colour black
Logistics
Property Value
Customs tariff number 85369095
Country of origin PL
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
