3118203 | Phoenix Contact
Fuse terminal block, 2 pole, 0.2-6.0 mm², 250 V, 30 A, 3118203
Unit Price (€ / pc.)
12.9353 € *
Available in 5 Days: 48,881 pcs. - if ordered today

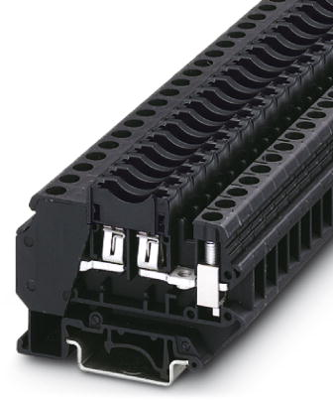

Fuse terminal block, 3118203, Phoenix Contact
Flat-type fuse terminal block, Cross section: 0.2-6 mm², AWG: 26-8, Width: 8.2 mm, Color: black.
Can be bridged with FBI fixed bridge
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fuse terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.2-6.0 mm² | |
| AWG cross-section | AWG 26 to 8 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Rated current | 30 A | |
| Degree of soiling | 3 | |
| Length | 64 mm | |
| Width | 8.2 mm | |
| Height | 52 mm | |
| Connection | screw connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
