3074172 | Phoenix Contact

Fuse terminal block, 2 pole, 0.14-6.0 mm², 24 V, 6.3 A, 3074172

Order No.: 60P5694
EAN: 4046356343169
MPN:
3074172
UT 4-HESILED 24 (5X20) GY
Series: UT

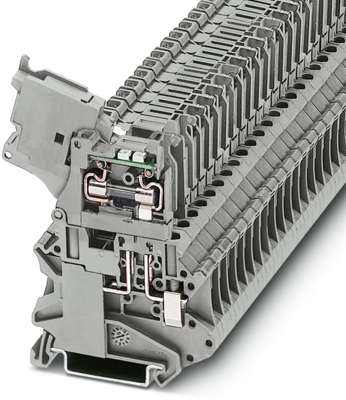

3074172 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
11.067 € *
Available in 10 days: 34 pcs. - if ordered today
Total Price:
553.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
11.067 €

Fuse modular terminal block, 3074172, Phoenix Contact

Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, nom. voltage: 24 V, Nominal current: 6.3 A, Number of positions: 1, Connection method: Screw connection, Rated cross section: 1 mm², Cross section: 0.14-6 mm², Mounting type: NS 35/7,5, NS 35/15, Color: gray.

Technical specifications
Filter Property Value
Version fuse terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.14-6.0 mm²
AWG cross-section AWG 26 to 10
Rated Voltage 24 V
Rated surge voltage 4 kV
Rated current 6.3 A
Degree of soiling 3
Length 57.8 mm
Width 6.2 mm
Height 73 mm
Connection screw connection
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
