3073995 | Phoenix Contact

Fuse terminal block, 2 pole, 0.14-4.0 mm², 250 V, 6.3 A, 3073995

Order No.: 60P5736
EAN: 4046356416238
MPN:
3073995
UT 4-PE/HESI (5X20)
Series: UT
3073995 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
9.4605 € *
Available in 10 days: 752 pcs. - if ordered today
Total Price:
9.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.4605 €

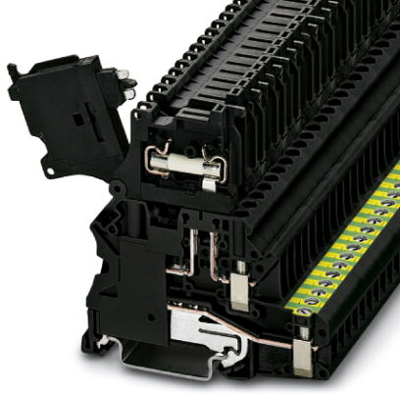

Ground modular terminal block, 3073995, Phoenix Contact

Ground modular terminal block with fuse holder for G fuse insert, Cross section: 0.14-4 mm², AWG: 26-10, Width: 6.2 mm, Color: black.

Technical specifications
Filter Property Value
Version fuse terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.14-4.0 mm²
AWG cross-section AWG 26 to 10
Rated Voltage 250 V
Rated surge voltage 6 kV
Rated current 6.3 A
Degree of soiling 3
Length 70.8 mm
Width 6.2 mm
Height 73 mm
Connection screw connection
Colour black
Logistics
Property Value
Country of origin PL
Customs tariff number 85369095
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
