3062142 | Phoenix Contact

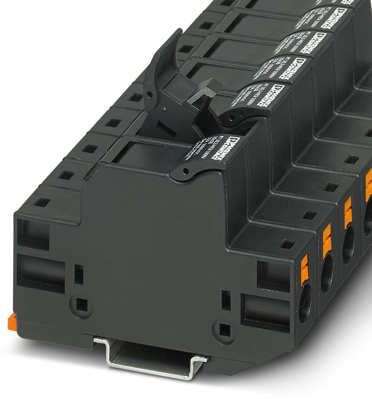

Fuse terminal block, 2 pole, 1.5-10 mm², 1000 V, 20 A, 3062142
Unit Price (€ / pc.)
7.0091 € *
Available in 5 Days: 18,654 pcs. - if ordered today
Total Price:
7.01 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0091 €
10 pcs.
6.4379 €
50 pcs.
5.8667 €
100 pcs.
5.2717 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holder, 3062142, Phoenix Contact
Fuse holder, Fuse type: gPV 10.3x38 mm in accordance with 60269-6, Nom. voltage: 1000 V, Nominal current: 20 A, Connection method: Push-in connection, Rated cross section: 10 mm², Cross section: 1.5-10 mm², Mounting type: NS 35/7,5, NS 35/15, color: black.
Fuse holder for fusing PV strings 1000 V DC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fuse terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 1.5-10 mm² | |
| AWG cross-section | AWG 16 to 6 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 20 A | |
| Degree of soiling | 3 | |
| Length | 87 mm | |
| Width | 17.6 mm | |
| Height | 63 mm | |
| Connection | push-in connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
