3050374 | Phoenix Contact

Fuse terminal block, 2 pole, 2.5 mm², 24 V, 6.3 A, 3050374

Order No.: 60P3922
EAN: 4046356056212
MPN:
3050374
QTC 2,5-HESILED 24 (5X20)
Series: QTC

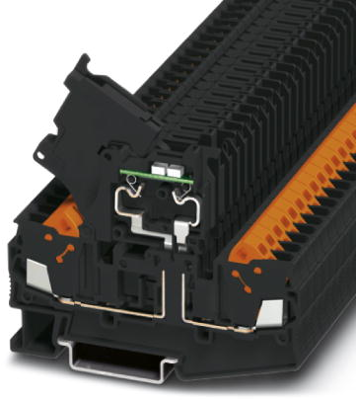

3050374 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
14.0658 € *
Available in 10 days: 588 pcs. - if ordered today
Total Price:
703.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
14.0658 €

Fuse terminal block, 3050374, Phoenix Contact

Lever-type fuse terminal block, black, for 5x20 mm G fuse inserts, with LED for 24 V DC.

Features

  • An extremely compact design
  • Test connection on both sides in safety lever
Technical specifications
Filter Property Value
Version fuse terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 2.5 mm²
AWG cross-section AWG 20 to 14
Rated Voltage 24 V
Rated surge voltage 4 kV
Rated current 6.3 A
Degree of soiling 3
Length 82.5 mm
Width 6.2 mm
Height 64.9 mm
Connection quick connection
Colour black
Logistics
Property Value
Country of origin CN
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
