3049000 | Phoenix Contact
Fuse terminal block, 4 pole, 0.2-4.0 mm², 24 V, 6.3 A, 3049000
Unit Price (€ / pc.)
26.4537 € *
Available in 10 days: 200 pcs. - if ordered today

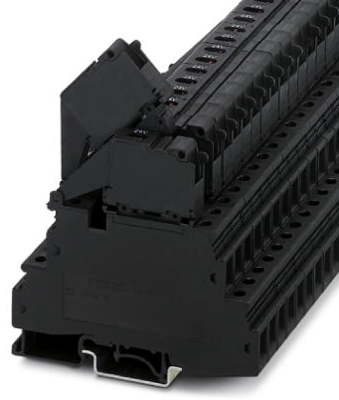

Fuse modular terminal block, 3049000, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, Nom. voltage: 24 V, Nominal current: 6.3 A, Connection method: Screw connection, Cross section: 0.2-4 mm², Rated cross section: 1.5 mm², Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fuse terminal block | |
| Number of terminals | 4 | |
| Pin number | 4 pole | |
| Cable cross-section | 0.2-4.0 mm² | |
| AWG cross-section | AWG 24 to 12 | |
| Rated Voltage | 24 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 6.3 A | |
| Degree of soiling | 3 | |
| Length | 86.5 mm | |
| Width | 8.2 mm | |
| Height | 79 mm | |
| Connection | screw connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
