3048690 | Phoenix Contact

Fuse terminal block, 2 pole, 1.5-25 mm², 72 V, 32 A, 3048690

Order No.: 60P5238
EAN: 4046356138635
MPN:
3048690
UK 10,3-CC HESILED N 72
Series: UK

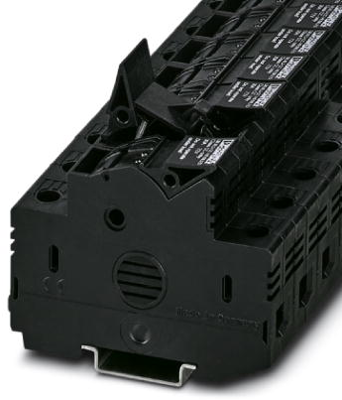

3048690 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
33.0344 € *
Available in 10 days: 544 pcs. - if ordered today
Total Price:
33.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.0344 €

Fuse modular terminal block, 3048690, Phoenix Contact

Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: Class CC, Nom. voltage: 72 V, Nominal current: 32 A, Connection method: Screw connection, Rated cross section: 25 mm², Cross section: 1.5-25 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.

Features

  • Fuse holder for fuses
  • Easy to bridge
  • Quick identification of faulty fuses regardless of the current direction, thanks to LED status indicator
Technical specifications
Filter Property Value
Version fuse terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 1.5-25 mm²
AWG cross-section AWG 16 to 4
Rated Voltage 72 V
Rated surge voltage 6 kV
Rated current 32 A
Degree of soiling 3
Length 81 mm
Width 18 mm
Height 65.5 mm
Connection screw connection
Colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
