3048593 | Phoenix Contact

Fuse terminal block, 2 pole, 1.5-25 mm², 690 V, 32 A, 3048593

Order No.: 60P5233
EAN: 4046356116008
MPN:
3048593
UK 10,3-CC HESI N 2POL
Series: UK

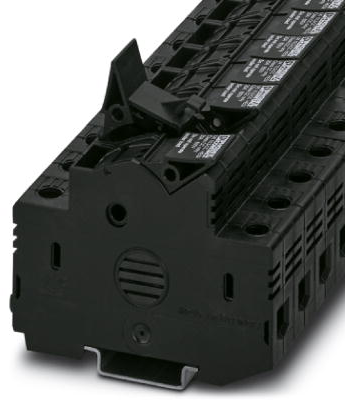

3048593 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
40.6623 € *
Available in 10 days: 1,236 pcs. - if ordered today
Total Price:
40.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
40.6623 €

Fuse modular terminal block, 3048593, Phoenix Contact

Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: Class CC, Nom. voltage: 600 V, Nominal current: 30 A, Connection method: Screw connection, Rated cross section: 25 mm², Cross section: 1.5-25 mm² , Mounting type: NS 35/7,5, NS 35/15, Color: black.

Features

  • Fuse holder for fuses
  • Easy to bridge
Technical specifications
Filter Property Value
Version fuse terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 1.5-25 mm²
AWG cross-section AWG 16 to 4
Rated Voltage 690 V
Rated surge voltage 6 kV
Rated current 32 A
Degree of soiling 3
Length 81 mm
Width 36 mm
Height 65.5 mm
Connection screw connection
Colour black
Logistics
Property Value
Customs tariff number 85369095
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
