3038778 | Phoenix Contact
Fuse terminal block, 2 pole, 4.0 mm², 250 V, 10 A, 3038778
Unit Price (€ / pc.)
19.7897 € *
Available: 49 pcs.
Available in 10 days: 2,160 pcs. - if ordered today
Total Price:
19.79 € *
Price list
Quantity
Price per unit*
1 pcs.
19.7897 €
10 pcs.
18.4093 €
25 pcs.
16.9337 €
50 pcs.
15.4105 €
*incl. VAT plus shipping costs
Subject to prior sale

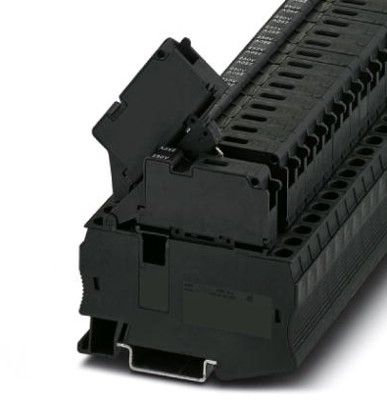

Fuse terminal block, 3038778, Phoenix Contact
Lever-type fuse terminal block, color: black, for 6.3x32 mm G fuse inserts, with LED for 250 V AC.
Features
- An extremely compact design
- Test connection on both sides in safety lever
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fuse terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 4.0 mm² | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 10 A | |
| Degree of soiling | 3 | |
| Length | 76.5 mm | |
| Width | 8.2 mm | |
| Height | 69 mm | |
| Connection | tension clamp connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
