3036495 | Phoenix Contact
Fuse terminal block, 2 pole, 4.0 mm², 12 V, 30 A, 3036495
Unit Price (€ / pc.)
15.4224 € *
Available in 10 days: 3,559 pcs. - if ordered today
Fuse terminal block, 3036495, Phoenix Contact

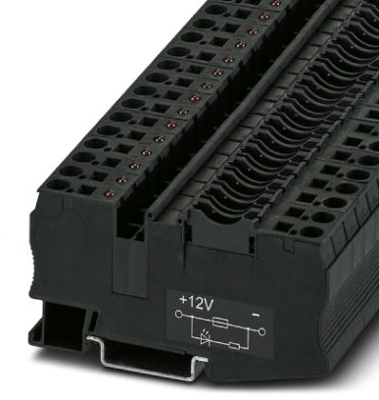

Fuse terminal block with LED for mounting on NS 35, for miniature circuit breakers, Terminal width: 8.2 mm, Color: Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fuse terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 4.0 mm² | |
| AWG cross-section | AWG 28 to 10 | |
| Rated Voltage | 12 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 30 A | |
| Degree of soiling | 3 | |
| Length | 86.5 mm | |
| Width | 8.2 mm | |
| Height | 43.5 mm | |
| Connection | tension clamp connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
