3007217 | Phoenix Contact
Fuse terminal block, 4 pole, 0.2-4.0 mm², 400 V, 32 A, 3007217
Unit Price (€ / pc.)
10.7219 € *
Available in 10 days: 202 pcs. - if ordered today

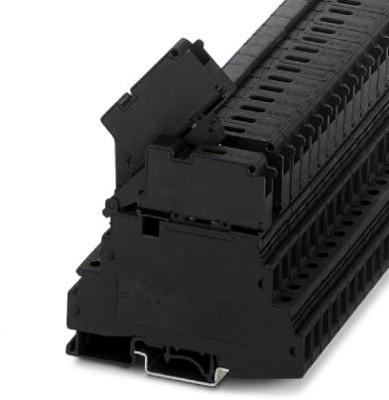

Fuse modular terminal block, 3007217, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/6,3x32, Nom. voltage: 400 V, nominal current: 32 A, Connection method: Screw connection, Rated cross section: 4 mm², Cross section: 0.2-4 mm², Connection method: Screw connection, Rated cross section: 1.5 mm², Cross section: 0.2-4 mm², Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: black.
Compact double-level fuse terminal block
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fuse terminal block | |
| Number of terminals | 4 | |
| Pin number | 4 pole | |
| Cable cross-section | 0.2-4.0 mm² | |
| AWG cross-section | AWG 24 to 12 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 32 A | |
| Degree of soiling | 3 | |
| Length | 86.5 mm | |
| Width | 8.2 mm | |
| Height | 79 mm | |
| Connection | screw connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
