3004139 | Phoenix Contact
Fuse terminal block, 2 pole, 0.2-4.0 mm², 250 V, 6.3 A, 3004139
Unit Price (€ / pc.)
17.1241 € *
Available in 5 Days: 57 pcs. - if ordered today

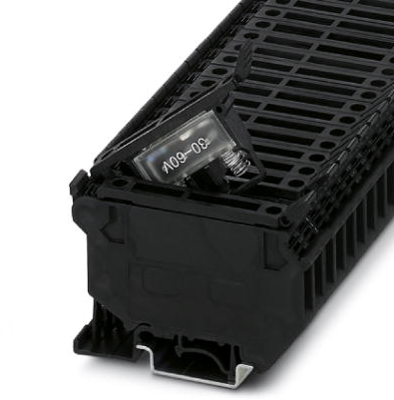

Fuse terminal block, 3004139, Phoenix Contact
Fuse terminal block for cartridge fuse insert, Cross section: 0.2-4 mm², AWG: 26-10, Width: 8.2 mm, Color: black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fuse terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.2-4.0 mm² | |
| AWG cross-section | AWG 26 to 10 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 8 kV | |
| Rated current | 6.3 A | |
| Degree of soiling | 3 | |
| Length | 72.5 mm | |
| Width | 8.2 mm | |
| Height | 56.5 mm | |
| Connection | screw connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
