2897402 | Phoenix Contact

Inline terminal, 500 kbit/s, 24 VDC, 2897402

Order No.: 64P9133
EAN: 4046356288026
MPN:
2897402
IB IL TEMP 4/8 RTD/EF-PAC
Series: IB IL
2897402 Phoenix Contact Function and technology modules

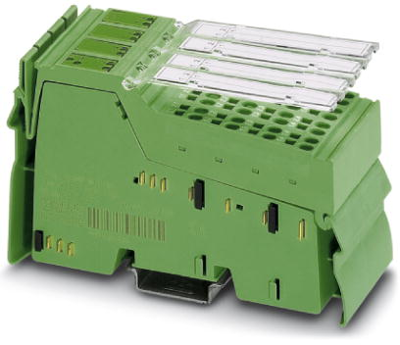

Image may differ
Unit Price (€ / pc.)
824.8009 € *
Available in 10 days: 226 pcs. - if ordered today
Total Price:
824.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
824.8009 €

Temperature module, 2897402, Phoenix Contact

Inline, Temperature measurement terminal, Analog RTD inputs: 8 (for resistance temperature detectors), Connection technology: 4-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connectors and marking fields.

Features

  • Pt, Ni, Cu, KTY sensor types according to DIN and SAMA
  • Connection of 8 RTD temperature sensors and linear resistors in 4-conductor technology
  • High precision and noise immunity
  • Temperature stability
  • High-resolution temperature and resistance measurement
  • Resistance values can be preset separately via parameterization bits
  • The channels are parameterized independently of one another via the bus system
  • Parameterization of wire-break detection sensitivity (firmware 1.10 or later)
  • Additional representation in float format according to IEEE754
  • Channel scout functionality, for optical channel identification during startup
Technical specifications
Filter Property Value
Height 119.8 mm
Depth 71.5 mm
Width 48.8 mm
Data transmission rate 500000 mb/s
Suitable for inline station
Assembly DIN rail
Version inline terminal
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
RoHS conform Yes
