3240060 | Phoenix Contact
Faston plug, 6.3 x 0.8 mm, L 24.5 mm, insulated, straight, yellow, 4.0-6.0 mm², AWG 12-10, 3240060
Unit Price (€ / pc.)
0.4403 € *
Available in 5 Days: 17,100 pcs. - if ordered today
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.3927 €
50 pcs.
0.3451 €
100 pcs.
0.3094 €
*incl. VAT plus shipping costs
Subject to prior sale

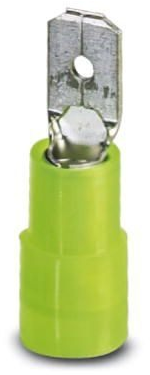

Flat connector, 3240060, Phoenix Contact
Flat connector, yellow, 4-6 mm², 6.3x0.8
Features
- Easy Entry for easy and reliable conductor entry
- Halogen-free
- Hard-soldered crimping zone for maximum pull-out forces
- Electrogalvanized
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12-10 | |
| Isolated | Yes | |
| Connection | crimp connection | |
| Cable cross-section | 4.0-6.0 mm² | |
| Design | straight | |
| Insulation colour | yellow | |
| Material | brass, tin-plated | |
| Version | faston plug | |

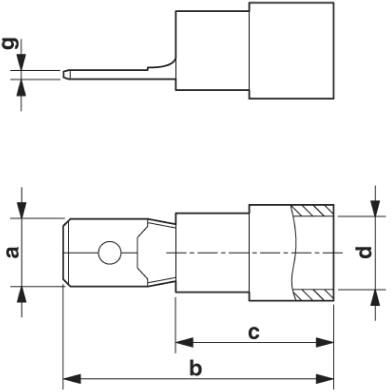

| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Length | 24.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
