3240058 | Phoenix Contact

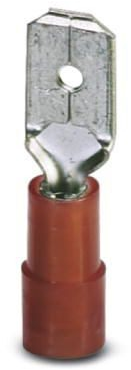

Faston plug, 6.3 x 0.8 mm, L 22 mm, insulated, straight, red, 0.5-1.5 mm², AWG 20-16, 3240058
Unit Price (€ / pc.)
0.3451 € *
Available in 5 Days: 9,700 pcs. - if ordered today
Flat connector, 3240058, Phoenix Contact
Flat connector, red, 0.5-1.5 mm², 6.3x0.8
Features
- Easy Entry for easy and reliable conductor entry
- Halogen-free
- Hard-soldered crimping zone for maximum pull-out forces
- Electrogalvanized
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-16 | |
| Length | 22 mm | |
| Insulation colour | red | |

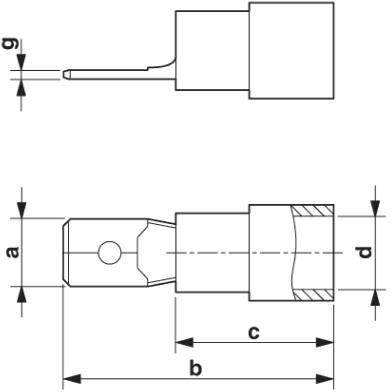

| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Design | straight | |
| Connection | crimp connection | |
| Cable cross-section | 0.5-1.5 mm² | |
| Material | brass, tin-plated | |
| Version | faston plug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
