2744429 | Phoenix Contact

Repeater, 1500 kbit/s, 24 VDC, 2744429

Order No.: 64P6907
EAN: 4017918171797
MPN:
2744429
PSM-ME-RS485/RS485-P
Series: PSM
2744429 Phoenix Contact Fieldbus repeaters and serial interface converters
Image may differ
Unit Price (€ / pc.)
444.2627 € *
Available in 10 days: 1,016 pcs. - if ordered today
Total Price:
444.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
444.2627 €

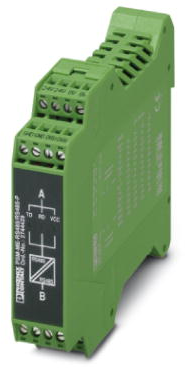

Repeater, 2744429, Phoenix Contact

Repeater for potential separation and range increase in RS-485 2-wire bus systems, 3-way isolation, rail-mountable.

Features

  • Mounting on standard EN DIN rails
  • Transmission speeds of up to 1.5 Mbps
  • Space-saving slim 22.5 mm device
  • Integrated, connectable termination resistors
  • All connections can be plugged in using a COMBICON screw terminal block
  • Shipbuilding approval in accordance with DNV GL
Technical specifications
Filter Property Value
Assembly DIN rail
Version repeater
Interfaces modbus
Width 22.5 mm
Data transmission rate 1500000 mb/s
Height 99 mm
Depth 114.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
