2708863 | Phoenix Contact

Repeater, 12 Mbit/s, 24 VDC, 2708863

Order No.: 64P6875
EAN: 4046356078993
MPN:
2708863
PSI-REP-PROFIBUS/12MB
Series: PSI
2708863 Phoenix Contact Fieldbus repeaters and serial interface converters

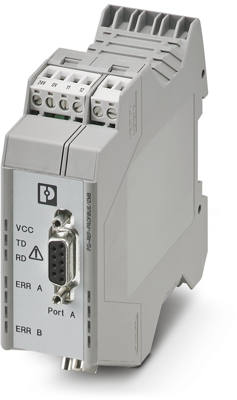

Image may differ
Unit Price (€ / pc.)
557.6578 € *
Available in 10 days: 128 pcs. - if ordered today
Total Price:
557.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
557.6578 €

Repeater, 2708863, Phoenix Contact

Modular repeater for electrical isolation and range increase for PROFIBUS up to 12 Mbps, 4-way isolation, rail-mountable, supply 24 VDC.

Features

  • Automatic data rate detection or fixed data rate setting via DIP switches
  • Suitable for all data rates up to 12 Mbps
  • High-quality 4-way isolation between all interfaces
  • Bit oversampling for reliable detection of sporadic disturbances
  • Bit retiming for unrestricted cascading of devices
  • Filtering of faulty telegrams based on start delimiter detection
  • Can be combined with PSI-MOS FO converters in a modular way thanks to DIN rail connectors
Technical specifications
Filter Property Value
Assembly DIN rail
Version repeater
Interfaces profibus
Width 35 mm
Data transmission rate 12000000 mb/s
Height 99 mm
Depth 105 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
