2313096 | Phoenix Contact

Repeater, 500 kbit/s, 24 VDC, 2313096

Order No.: 64P6876
EAN: 4046356098816
MPN:
2313096
PSI-REP-RS485W2
Series: PSI
2313096 Phoenix Contact Fieldbus repeaters and serial interface converters
Image may differ
Unit Price (€ / pc.)
583.6117 € *
Available in 10 days: 76 pcs. - if ordered today
Total Price:
583.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
583.6117 €

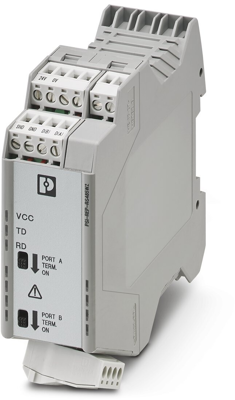

Repeater, 2313096, Phoenix Contact

Modular repeater for electrical isolation and range increase in RS-485 2-wire bus systems up to 500 kbps, 4-way isolation, rail-mountable, supply 24 VDC.

Features

  • Data rates of up to 500 kbps (adjustable via DIP switches)
  • Bit oversampling for reliable detection of sporadic disturbances
  • Bit retiming for unrestricted cascading of devices
  • Integrated, connectable termination resistors
  • Can be combined with PSI-MOS FO converters in a modular way thanks to DIN rail connectors
  • Approved for use in zone 2
Technical specifications
Filter Property Value
Assembly DIN rail
Version repeater
Interfaces modbus
Width 35 mm
Data transmission rate 500000 mb/s
Height 99 mm
Depth 105 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
