1146542 | Phoenix Contact
FO patch cable, LC duplex to SC duplex, 10 m, OM4, multimode 50/125 µm, 1146542
Order No.: 62P7463
EAN: 4063151138059
MPN:
1146542
FOC-LC:PA-SC:PA-OM4:D01/10
Unit Price (€ / pc.)
52.9550 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
52.96 € *
Price list
Quantity
Price per unit*
1 pcs.
52.9550 €
5 pcs.
51.4437 €
10 pcs.
50.0157 €
25 pcs.
48.6591 €
*incl. VAT plus shipping costs
Subject to prior sale

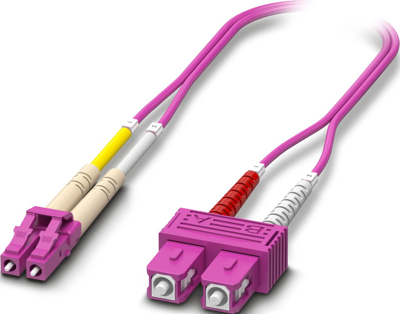

FO patch cable, 1146542, Phoenix Contact
Multi-mode OM4 duplex jumper, LC-SC, UPC polishing, length 10 m.
Features
- Temperature change test in accordance with IEC 61300-2-1
- Vibration test according to IEC 61300-2-1
- Tensile strength of the cable connection according to IEC 61300-2-5
- Multimode patch cable with outstanding optical and mechanical properties for indoor installation
- Fire protection with LSZH sheath and UL 94 V0 components
- Interferometer tests at every stage of the certification process
- Satisfies optical and mechanical industry standards
- Connector with UPC polishing for optimum attenuation values
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | FO patch cable | |
| Connection (1) | LC duplex | |
| Connection (2) | SC duplex | |
| Cable length | 10 m | |
| Category | OM4 | |
| Chamfer type | multimode 50/125 µm | |
| Cable type | I-V(ZN)H | |
| Material | LSZH | |
| Colour | purple |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85447000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
