1146528 | Phoenix Contact
FO patch cable, SC duplex to SC duplex, 10 m, OM1, multimode 62.5/125 µm, 1146528
 Order No.: 62P7398
  EAN: 4063151138240
  MPN:
  1146528
  FOC-SC:PA-SC:PA-OM1:D01/10
 Unit Price (€ / pc.)
   38.5322 €  *
   Standard delivery time from the manufacturer is: 11 Weeks
 Total Price:
  38.53 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 38.5322 €
 5 pcs.
 36.8424 €
 10 pcs.
 35.2835 €
 25 pcs.
 33.8555 €
  *incl. VAT plus shipping costs
  Subject to prior sale

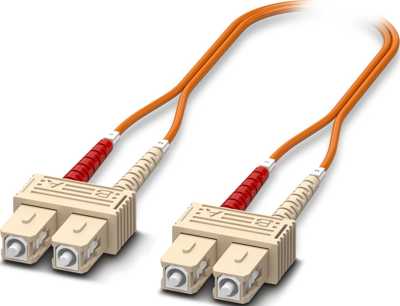

 FO patch cable, 1146528, Phoenix Contact
Multi-mode OM1 duplex jumper, SC-SC, UPC polishing, length 10 m.
Features
- Temperature change test in accordance with IEC 61300-2-1
- Vibration test according to IEC 61300-2-1
- Tensile strength of the cable connection according to IEC 61300-2-5
- Multimode patch cable with outstanding optical and mechanical properties for indoor installation
- Fire protection with LSZH sheath and UL 94 V0 components
- Interferometer tests at every stage of the certification process
- Satisfies optical and mechanical industry standards
- Connector with UPC polishing for optimum attenuation values
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Version | FO patch cable | |
| Connection (1) | SC duplex | |
| Connection (2) | SC duplex | |
| Cable length | 10 m | |
| Category | OM1 | |
| Chamfer type | multimode 62.5/125 µm | |
| Cable type | I-V(ZN)H | |
| Material | LSZH | |
| Colour | orange |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85447000 |
| Country of origin | CN |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
