2981732 | Phoenix Contact

PSR extension module, 4 Form A (N/O) + 1 Form B (N/C), 24 VDC, 6 A, 2981732

Order No.: 64P2749
EAN: 4046356103695
MPN:
2981732
PSR-SCP- 24DC/URD3/4X1/2X2/3
Series: PSR
2981732 Phoenix Contact Expansion modules

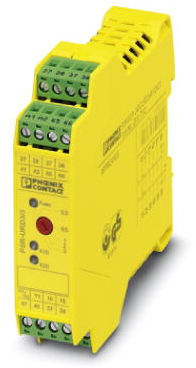

Image may differ
Unit Price (€ / pc.)
245.7588 € *
Available in 10 days: 14 pcs. - if ordered today
Total Price:
245.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
245.7588 €

Extension module, 2981732, Phoenix Contact

1-channel contact extension with TBUS interface, 4 N/O contacts, 1 N/C contact, 1 confirmation current path, the contacts have an off-delay (0.3-3 s), Cat. 3, PL e in accordance with EN ISO 13849, plug-in terminal blocks with screw connection, width: 22.5 mm.

Technical specifications
Version extension module
Contact type 4 Form A (N/O) + 1 Form B (N/C)
Control Voltage 24 VDC
switching current 6 A
Assembly DIN rail
Width 22.5 mm
Height 99 mm
Depth 114.5 mm
Logistics
Customs tariff number 85371098
Country of origin DE
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
